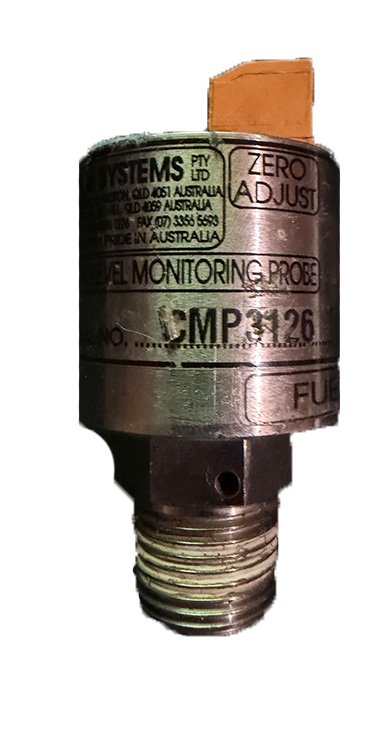

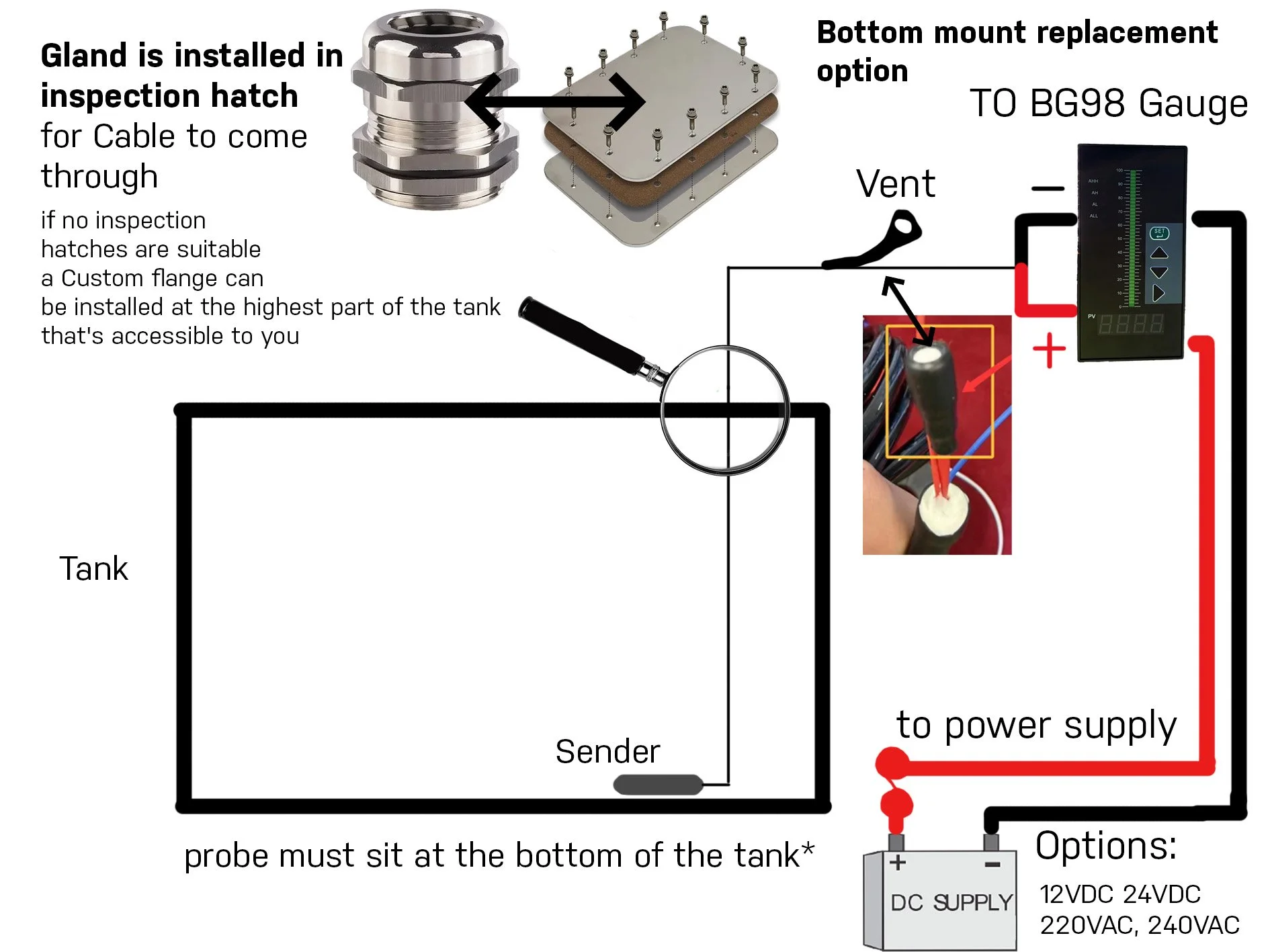

The TLMP-98 Sensor incorporates a loop powered solid state differential pressure sensor which measures the level of liquid in your tank & provides a 4-20ma output proportional to tank height. 316 stainless steel housing 38mm dia. Sensor powered from +10 to 36 v dc. Plug in terminal on top for 2 core shielded cable to display. Rubber boot water shield. Sensor can be top or bottom mounted. ½” bsp t(m) mounting thread. Suitable for Fuel, Fresh, Grey, Black & Bilge Water & Lube Oil etc. Suitable for tanks, up to a depth of 3,000mm. TLMP-98 Sensor is custom built to your tank depth and supplied calibrated ready to screw in.

20 LED colour coded bargraph display of Tank Level.

• Housed in compact flush mount modules 36x72mm.

• Modules for Fuel, Fresh, Grey, Black, Bilge Water, Oil tanks etc.

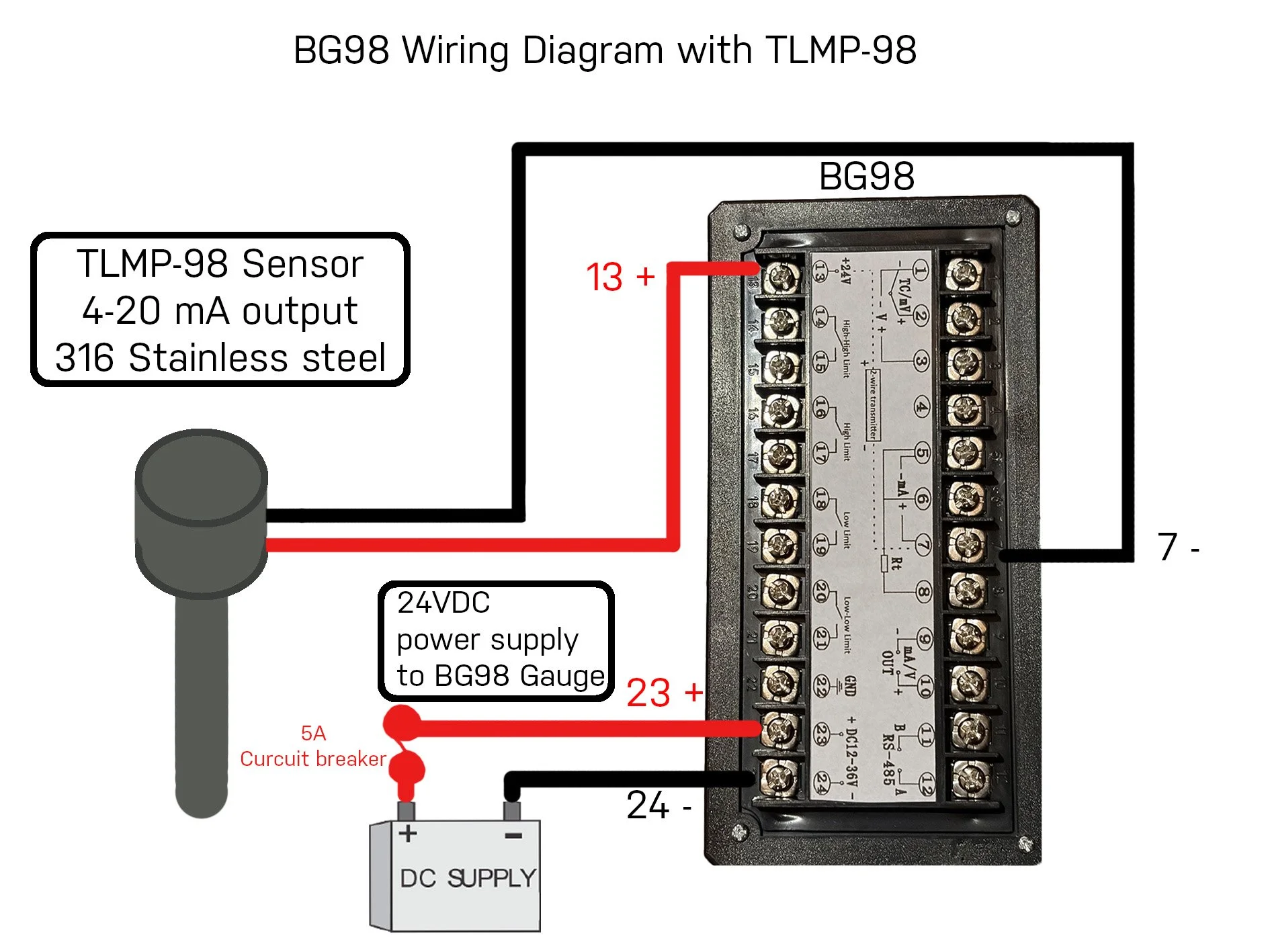

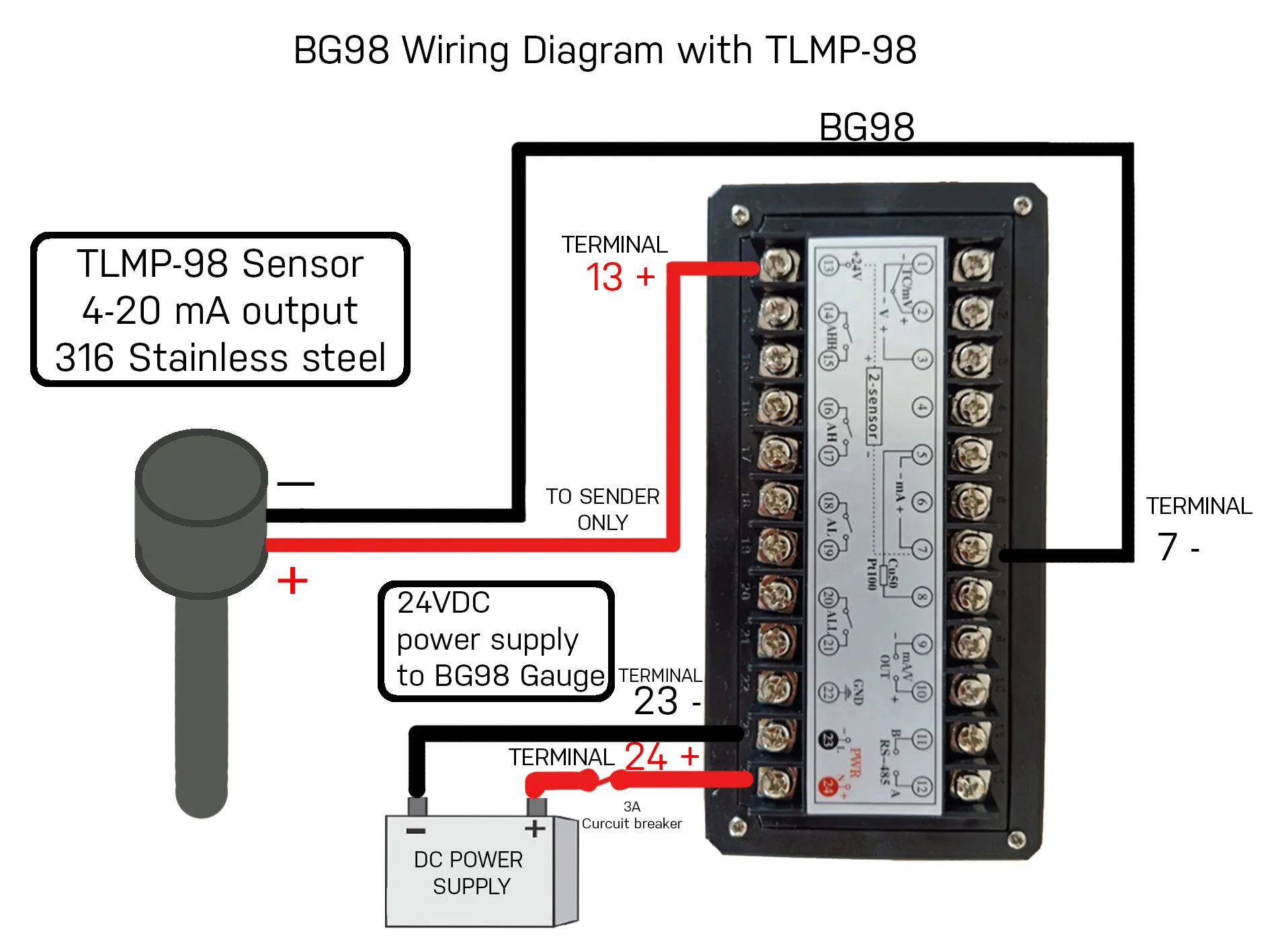

• Simple to install with 4 way plug-in terminal on rear for connection to power (12 or 24 vdc) & TLMP-98 Tank Level Monitoring Probe.

Provides 20 LED display of Tank Level with independent tank high and tank low alarms.

• The AIM-TA is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch controls with tactile feedback for greater reliability.

• Independently adjustable high & low alarms.

• Compact flush mount module 55 x 99 x 125mm deep.

• Simple to install with plug-in wiring terminal on rear and wiring drawing on the side.

Provides 20 LED display of Tank Level with manual pump up controls and alarms configured for controlling grey & black water tank pump out, day fuel tank top up, fresh water tank level control etc.

• The AIM-TC is easy to use with system status display back illuminated by multi colour LEDs for easy to read, instant status recognition.

• Sealed touch switch pump and alarm controls with tactile feedback for greater reliability.

• Independently adjustable, alarms, pump on and pump off levels.

• Compact flush mount self contained module 55 x 99 x 125 mm deep.

• Simple to install with plug-in wiring terminal on the rear of module and wiring drawing on the side.

Provides 20 LED display of Tank Level with auto or manual pump out controls and alarms configured for controlling grey & black water tank pump out.

• The AIM-TC is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch pump and alarm controls with tactile feedback for greater reliability.

• Independently adjustable alarms, pump due/run and pump off levels.

• Compact flush mount self contained module 55 x 99 x 125 mm deep.

• Simple to install with plug-in wiring terminal on the rear of module & wiring drawing on the side.

Provides 20 LED display of Tank Level with manual start, auto off controls and alarms configured for controlling your black water tank pump out.

• The AIM-TC is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch pump and alarm controls with tactile feedback for greater reliability.

• Independently adjustable tank height alarms, pump due/run and pump off levels.

• Compact flush mount self contained module 55 x 99 x 125 mm deep.

• Simple to install with plug-in wiring terminal on the rear of module and wiring drawing on the side.

Provides 20 LED display of Tank Level with independent Tank High and Tank Low Alarms.

• The AIM-TA is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch controls with tactile feedback for greater reliability.

• Independently adjustable display, high & low alarms.

• Compact flush mount module 55 x 99 x 125mm deep.

• Simple to install with plug-in wiring terminal on rear & wiring drawing on the side.

All of the features of the AIM-TC but with addition of Auto/Manual pump out mode select switch, so that pump out mode can be varied between manual pump start and auto pump start to suit your operational area.

• The AIM-HTC is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch pump out, mode and alarm controls for greater reliability.

• Independently adjustable display, alarms, pump on and pump off levels.

• Compact flush mount self contained module 55 x 99 x 125 mm deep.

• Simple to install with plug-in wiring terminals on the rear of module & wiring drawing on the side.

The AIM-HTC is easy to use with system status display back illuminated by multi coloured LEDs for easy to read, instant status recognition.

• Sealed touch switch pump, mode and alarm controls with tactile feedback for greater reliability.

• Independently adjustable display, alarms, pump on and pump off levels.

• Compact flush mount self contained module 55 x 99 x 125 mm deep.

• Simple to install with plug-in wiring terminals on the rear of module & wiring drawing on the side.
